MFD28
MFD28 Key Features
Customisable directly on the screen

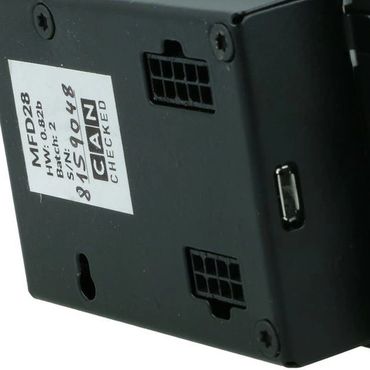

- Hardware: 2.8 "TFT screen, touchscreen , MicroSD, MicroUSB, milled bezel
- Freely configurable directly on the display
- Widgets can be moved and resized using drag'n'drop
- up to 17 widgets per view
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analogue inputs
- 2x speed input
- Shift light optional
- Can bus switching
- Data logging

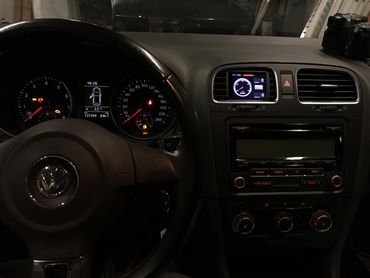

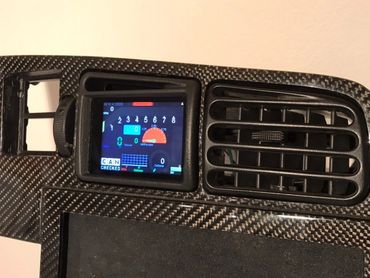

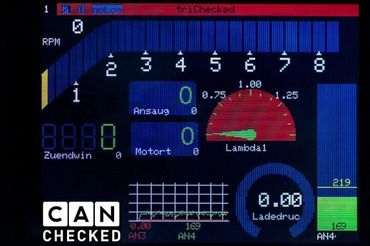

Customisable directly on the screen
Customisable directly on the screen
- 10 displays freely configurable
- up to 17 widgets per view
- 8 different widgets (digital number, bar, speed widget, single pointer, log, image (from SD card), number, circle, logging start / stop)
- Widgets can be moved using drag'n'drop
- Resize the widgets
- Color adjustment of the widgets (depending on the widget)
The online configurator is available as an alternative . Here the views can be created in advance and then copied to the SD card using the export function.
Individual min and max values per sensor
Individual min and max values per sensor
- Min value: Lowest value that occurred
- Min warning value: Value from which a warning is issued if the value falls below the limit
- Max value: Highest value that occurred
- Max warn value: Value from which a warning is issued when exceeded
- Beep: A tone is emitted if the "min / max warning value" is exceeded or not reached
- Popup: If the "min / max warning value" is exceeded or not reached, a pop-up window is displayed
- RefSensor: only when this sensor ...RefValue:... is above this value, a warning is issued
Logging, Right there on the screen!
Individual min and max values per sensor
4 different types of logging
- USB: logs all sensor data live via USB
- SD card: all sensor data are logged onto the SD card
- Debug: all CAN bus data is logged via USB
- CAN logger: all CAN bus data is logged onto the SD card
The log viewer is available online to evaluate the logs . Simply load the log file and use the intuitive interface.
MFD28 with Add on Shift light module
MFD28 with Add on Shift light module
Supported ECUs
MFD28 with Add on Shift light module
In general, all control devices are supported that have a documented CAN bus interface. The manufacturers usually supply a "dbc" file which can then be converted for the display.
The following control units have already been tested:
- Megasquirt 2 and 3
- k-data KDFI
- UMC1 / UMC2
- Microsquirt
- EFIgnition
- MaxxECU
- EcuMaster Emu (standard with CAN, standard with Can Bus Adapter, Black)
- VAG (Audi / VW / Seat)
- LinkECU
- AEM EMS
- Motorsport Electronics ME442 and ME221 (the latter with adapter)
- MME ECU481 (with MME Can Bus adapter)
- VEMS (with serial adapter)
