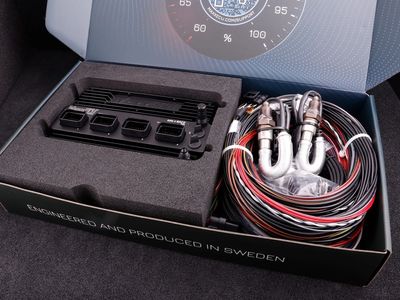

MAXX RACE GEN II

When every millisecond matters, on the street, track or dragstrip, the GEN2 RACE gives you access to virtually all engine data, allowing you to fine-tune every aspect for peak performance. It comes with the intuitive MTune software for seamless tuning and real-time monitoring, plus full control with the wireless MDash Android app, taking your setup to the next level.

Up to 12 cylinders fully sequentially. Up to 12 cylinders in wasted spark.

Built-in MAP sensor supporting up to 4.5 bar / 65 PSI of boost.

Black powder-coated aluminium case with IP68 water-protection rating.

Volumetric efficiency fuel tuning

Boost control (triple stage)

Launch control

Anti-lag with cooldown features

Traction and power management control

Shift cut and sequential gearbox control

Flexfuel

Nitrous with purge and multiple stage control

Knock control

VANOS / VVTi, variable valve timing

Auto trans (4L60/65/80/85E, A340/341/650E)

OEM CAN integrations

DSG / DCT / 8HP CAN gearbox control

Internal log up to 1000Hz

Waterproof IP68

550 kPa MAP sensor (4.5 bar / 65 PSI boost)

16 injector

12 ignition

Dual Wideband Lambda

Dual CAN

Dual knock

WIFI and Bluetooth

• All 1-12 cylinder engines (2/4-stroke)
• Up to 12 cylinders fully sequentially
• Up to 12 cylinders in wasted spark

• 8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
• 24 Analog inputs (selectable pullups)
• 8 Exhaust Gas Temperature inputs (TYPE-K)
• Dual wideband lambda (LSU 5.2/4.9/4.2)
• Dual knock sensor input

• 16 injectors (Peak-hold high/low impedance) / GP outputs
• 12 IGN / GP outputs (selectable +5V/12V/GND)
• 8 GP Outputs (GND)
• 4 GP Outputs (+12V)
• 4 GP Outputs (H-bridge/E-Throttle)

• Superseal 1.0 connectors
• 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable,with BSP 1/8 thread
• 3-axis accelerometer (up to 8 G)
• ARM dual core CPU
• 6-22V operating voltage
• 16GB internal log capacity, 1000Hz, all 1600+ channels
• USB-C 480mbit/s (MTune PC communication)
• USB-C 12mbit/s (tablet charging).**
• WIFI communication with MTune and MDash**
• Bluetooth connectivity with MDash
• Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
• Resolution on ignition: 0.1 degrees
• Resolution on injectors: 0.001 ms
• Performs fuel and ignition calculations 3,000 times per second.
• 200Hz sampling rate on all EGT inputs
• 2000Hz sampling rate on analog/digital inputs
• Weight: 700g
• 240x138x35mm including protruding connectors
• Black powder-coated aluminium case
• All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
